Growth of thin films using pulsed laser deposition (PLD) technique

MBE/PLD-2000 system



Pulsed laser deposition is a physical vapor deposition technique where a high-power pulsed laser beam is focused inside a vacuum chamber to strike a target of the material that is to be deposited. This material is vaporized from the target (in a plasma plume) which deposits it as a thin film on a substrate. This process can occur in ultrahigh vacuum or in the presence of a background gas, such as oxygen.

The main advantages of PLD are -conceptually simple (a laser beam vaporizes a target surface, producing a film with the same composition as the target), -versatile (many materials can be deposited in a wide variety of gases over a broad range of gas pressures), -cost-effective (one laser can serve many vacuum systems, the targets used in PLD are small compared with the large size required for other sputtering techniques), -fast (high quality samples can be grown reliably in 10 or 15 minutes). This technique enables to produce multi-layered films and structures in one vacuum cycle. And because of the high heating rate of ablated materials, laser deposition of crystalline film demands lower substrate temperature than other film growth techniques. For this reason the semiconducting and superconducting structures can refrain from thermal degradation.

The equipment is used for the preparation of dielectric (MgO, CeO2, YSZ, SrTiO3, Bi4Ti3O12, V2O3), perovskite-like superconducting (YBa2Cu3O7-x), manganite (La0.67Sr0.33MnO3) films and structures for possible applications, e.g. bolometer, as well as for the preparation of structures for study of interaction between superconducting and ferromagnetic layers.

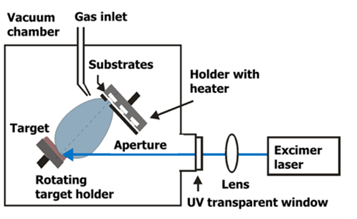

Schematic view of a PLD system



Recent publications:

Chromik, Š., Španková, M., Talacko, M., Dobročka, E., and Lalinský, T.: Some peculiarities at preparation of Bi4Ti3O12 films for bolometric applications, Applied Surface Sci 461 (2018) 39-43.

Nurgaliev, T., Štrbík, V., Gál, N., Chromik, Š., and Sojková, M.: Electrical transport effects in YBCO/LSMO bilayer junctions, Physica B 550 (2018) 324-331.

Gál, N., Štrbík, V., Gaži, Š., Chromik, Š., Talacko, M. : Resistance Anomalies at Superconducting Transition in Multilayer N/S/F/S/N Heterostructures, JOURNAL OF SUPERCONDUCTIVITY AND NOVEL MAGNETISM, https://doi.org/10.1007/s10948-018-4720-x.

Sojková, M., Nurgaliev, T., Štrbík, V., Chromik, Š., Blagoev, B., and Španková, M.: LSMO/YBCO heterostructures and investigation of „negative“ resistance effect in the interface, Acta Phys. Polonica A 131 (2017) 842-844.

Španková, M., Štrbík, V., Chromik, Š., Zheng, D.N., Li, J., Machajdík, D., Kobzev, A.P., Plecenik, T., and Sojková, M.: Characterization of epitaxial LSMO films grown on STO substrates, Acta Phys. Polonica A 131 (2017) 848-850.

Štrbík, V., Beňačka, Š., Gaži, Š., Španková, M., Šmatko, V., Knoška, J., Gál, N., Chromik, Š., Sojková, M., and Pisarčík, M.: Superconductor-ferromagnet-superconductor nanojunctions from perovskite materials, Applied Surface Sci 395 (2017) 237-240.

Chromik, Š., Camerlingo, C., Sojková, M., Štrbik, V., Talacko, M., Malka, I., Bar, I., Bareli, G., and Jung, G.: Low energy electron beam processing of YBCO thin films, Applied Surface Sci 395 (2017) 42-49.
